Linux Plug-in Architecture
Architecture
Overview
AudioReach plug-in architecture for Linux is designed to enable genuine AudioReach development workflow and provide same richness of features AR has to offer. At the same time, plug-in architecture must be able to interoperate with well-established Linux audio frameworks and APIs in order to serve broad Linux ecosystem need. Particularly, ALSA support is available on most, if not all, of Linux-based platform ubiquitously. Many applications and middleware have been developed to run on top of ALSA. Though plug-in architecture would not utilize kernel ALSA framework for DSP configuration, ALSA interface would still be supported through plug-in approach. At the same time, plug-in architecture would still interface with kernel ALSA/ASoC framework for configuration of audio peripherals e.g mixed signal CODEC given many peripheral drivers have been developed as ASoC CODEC compliant drivers.
At high level, plug-in architecture can be seen consisting of five major pieces as depicted in figure below. First piece is a set of AudioReach kernel drivers responsible for establishing connection with AudioReach engine in audio DSP through IPC driver and provide user-space interface to channel commands and events exchanged between user-space and ARE. Second piece is Linux implementation of OSAL providing OS services to Audioreach Graph Services(ARGS). OSAL interfaces with AR kernel drivers in order to communicate with ARE in audio DSP. Third piece is a set of software modules which plug into tinyalsa, alsa lib and tinycompress libraries and translate ALSA commands and constructs to ARGS commands and constructs for audio graph setup and configuration in the audio DSP. Fourth piece is Platform Adaptation Layer(PAL) which alleviates clients from managing low level use cases setup and sound devices configuration with GKV/CKV/TKV and invoking ALSA APIs. At last, fifth piece is adaptation layer to enable well-known audio middleware, such as PulseAudio, gain access to services exposed by PAL. At the same time, path which PulseAudio interfaces with ALSA library can still be supported with configuration data abstracted into Use Case Manager(UCM) file.
Linux Plug-in Architecture Diagram
Building Blocks
TinyALSA Plug-in Architecture Diagram
PAL and other Applications
PAL and other Applications are clients which interface to TinyALSA APIs. These modules run it’s own process context as shown in the diagram.
PCM, Mixer, Compress
PCM, Mixer and Compress blocks are the enhanced TinyALSA and TinyCompress libraries with plugin support.
SND Card Parser
Parses card-defs.xml which contains definition of virtual cards and devices. It is used by tinyalsa to create virtual mixer controls and to get plugin library name associated with card/device. Card-defs.xml contains details of different PCM/Compress nodes such as device id and properties such as playback/record and session_mode.
Sample card-defs.xml entry:
<card>
<id>100</id>
<name>qcm6490virtualsndcard</name>
<pcm-device>
<id>100</id>
<name>PCM100</name>
<pcm_plugin>
<so-name>libagm_pcm_plugin.so</so-name>
</pcm_plugin>
<props>
<playback>1</playback>
<capture>0</capture>
</props>
</pcm-device>
<pcm-device>
<id>101</id>
<name>PCM101</name>
<pcm_plugin>
<so-name>libagm_pcm_plugin.so</so-name>
</pcm_plugin>
<props>
<playback>0</playback>
<capture>1</capture>
</props>
</pcm-device>
<mixer>
<id>1</id>
<name>agm_mixer</name>
<mixer_plugin>
<so-name>libagm_mixer_plugin.so</so-name>
</mixer_plugin>
</mixer>
</card>
PCM HW, Mixer HW, Compress HW
PCM HW, Mixer HW and Compress HW blocks are the TinyALSA modules which implement all ops to interface with established ALSA kernel ops and interacts with Kernel ALSA drivers.
PCM Plugin, Mixer Plugin, Compress Plugin
PCM Plugin, Mixer Plugin and Compress Plugin blocks register callbacks for all pcm, mixers and compressed ops to PCM, Mixer and Compress core fwk module. These modules load the plugin .so and call plugin_init function. and routes all pcm / mixer calls from application to plugin specific implementation.
TinyALSA PCM Plugin, TinyALSA Mixer Plugin, TinyALSA Compress Plugin
PCM , Mixer and Compress TinyALSA Plugins are TinyALSA plugins which route all pcm, mixer and compress calls from application to plugin specific implementation.
Audio Graph Manager(AGM)
AGM provides apis for mixer plugins, PCM and Compressed apis to setup audio usecases. It runs as an audio service ( by platform specific means such as init script) so it can cater multiple tinyALSA clients.
GSL
GSL is the graph service library which is responsible for loading and initialization of sub-graphs and graphs via Graph Key Vector, Graph setup and Dynamic handling of the sub-graphs within the graph, Data Command Management - Read/Write buffer and Calibration (Set Config/Get Config) of the ARE Modules.
AML
ACDB Management library also known as ACDB SW provides get/set APIs to retrieve and adjust data in the ACDB DATA files. Provides data abstractions and organization for how calibration data is to be consumed by the Audio Driver and it’s components.
IPC
GSL communicates over Generic Packet Router(GPR) protocol to communicate messages with ARE. Since ARE runs on a different subsystem, GSL has to communicate over a IPC layer. This IPC is implemented as a device node which is opened by userspace Linux datalink layer.
ASoC Drivers
ASoC drivers are the ALSA compatible drivers which together form sound card with PCM devices enumerated from ASoC dai links. Plug-in architecture bypasses ALSA framework for audio graph setup/configuration in audio DSP and data interface. These dai links are meant to provide access to hardware resources managed in the kernel like GPIOs, clocks and mixed signal CODEC.
AudioReach Realization through ALSA
ALSA dynamic PCM framework provides the ability to dynamically connect PCM front-end to physical dai links as shown below. In the following example either or both of PCM playback and compressed playback front end session can be connected to either or both of Bluetooth and Analog codec physical link by configuring the published mixer controls, widgets, routes, and etc.
ARE Graph to ASoC DPCM Concept Diagram
AudioReach plug-in architecture for Linux gets the inspiration from ALSA DPCM framework to model audio graph in form of front-end and back-end. Front-end PCM or compress ALSA devices can be connected to any of physical links often referred as back-ends. The details on how the front ends and back ends are enumerated are covered in detail in the AGM and TinyALSA Plugin documentation.
In Audioreach plug-in architecture, audio graph is organized into following segments for both playback and recording generally. At the same time, system designer can add additional subgraph type if deemed necessary for product

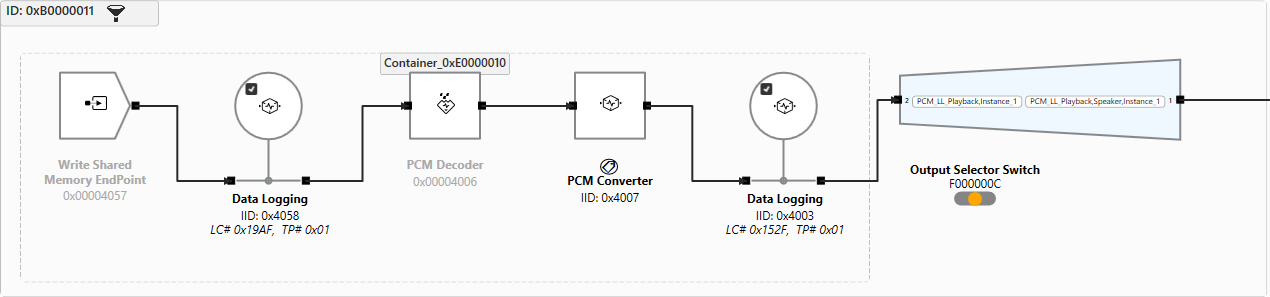

Stream: this segment provides data write/read interface, performs decoding/encoding if data is compressed.
Stream Post/Pre-Processing(PP): this segment contains stream-based processing modules e.g equalizer
Per Stream Per Device(PSPD): this segment is meant to contain module converting stream media format to device media format
Device-PP: this segment consists of PP modules for sound device tuning. For example, DRC processing is important for speaker device

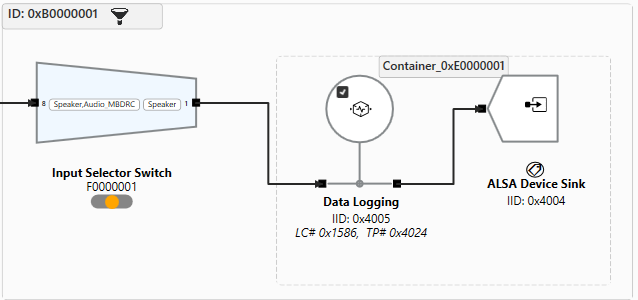

Device: hardware endpoint such as I2S port
These segments are referred to sub-graphs in AudioReach terminology. The front-end generally represents stream and stream PP subgraphs while back-end represents the PSPD, device-PP, device sub-graphs. In plugin architecture, byte-based mixer controls associated with front-end and back-end for clients to assign GKV and CKV as required metadata setup before starting PCM device and device switch.
Once a front-end is connected to back-end through routing mixer control, full GKV is formed by concatenating the subgraph GKVs and CKVs assigned through mixer controls. Upon opening of front-end PCM or compress device, AGM invokes GSL API with concatenated GKV and CKV to set up the graph in ARE and apply calibration. At the same time, AGM opens kernel pcm device corresponding to connected back-ends in order to kick off audio peripheral setup. This mechanism serves as fundamental design for constructing AudioReach graphs through ALSA and enable full audio path including SoC and audio peripherals.
Guidelines for assigning key vectors to sub-graphs
Based on the design described in previous section, the metadata(i.e the GKV and CKV) for FE and BE can be specified on three segments. One metadata mixer control is associated with each segment.
Stream - includes KVs for Stream, Stream PP subgraphs. The same KVs can be used to specify Stream and Stream PP.
Device - includes KVs for HW EP related subgraphs or optionally can also include Device PP subgraphs.
Stream Device - includes any subgraph in b/w stream and device subgraphs. eg Device pp, PSPD,
Sample Graph Design for Plug-in Architecture
Multi-Streams to Single-Device(MSSD) Playback
Graph Overview
Sample Audio Graph for MSSD Scenario
Figure depicts the reference design of audio graph for MSSD playback scenario. In this example, stream sub-graph and stream-PP sub graph are consolidated into just stream sub-graph. Stream subgraph consists of write shared memory endpoint, PCM decoder, PCM converter. Client passes PCM samples to write shared memory endpoint. PCM converter is put in place to convert PCM samples to format supported by the stream-specific post-processing modules if conversion is necessary. Output of stream subgraph is fed into stream-device subgraph which consists of media format converter(MFC). MFC is put in place to convert stream-leg PCM to device-leg PCM format. After conversion, output of stream-device sub-graph is fed into device PP subgraph for device-specific post-processing. Note that mixer is placed at the beginning of subgraph to mix input streams. Output of device PP subgraph is then feed into device subgraph containing hardware endpoint module such as I2S driver for eventual rendering out of SoC.
Key Vector Design
Sub-graph |
Keys |
|---|---|
Stream |
Key = StreamRx - type of playback
Key = Instance - instance of Playback
|
Stream Device |
Key = StreamRx - type of playback
Key = Device - logical sound device
|
Device PP |
Key = Device - logical sound device
Key = DevicePP_rx - name of device PP set
|
Device |
Key = Device - logical sound device
|
MetaData Grouping |
KV |
|---|---|
Stream1 Metadata |
StreamRX1 KVs |
Stream2 Metadata |
StreamRX2 KVs |
Device Metadata |
DeviceRX KVs |
Stream1 + Device Metadata |
StreamRX1DeviceRX KVs, DeviceRX PP KVs |
Stream2 + Device Metadata |
StreamRX2DeviceRX KVs, DeviceRX PP KVs |
GKV
GKV1: <StreamRX1 KVs, StreamRX2 PP KVs, StreamRX1DeviceRX KVs, DeviceRX PP KVs, DeviceRX KVs>
GKV2: <StreamRX2 KVs, StreamRX2 PP KVs, StreamRX2DeviceRX KVs, DeviceRX PP KVs, DeviceRX KVs>
Single-Stream to Multi-Device(SSMD) Playback
Graph Overview
Figure depicts the reference design of audio graph for SSMD playback scenario. In essence, stream sub-graph is nearly identical to MSSD scenario except that additional splitter is added to end of stream subgraph so output can be routed to both stream-device sub-graphs for headphone and speaker respectively. Then, there are device PP and device sub-graphs for headphone and speaker respectively.
Sample Audio Graph for SSMD Scenario
Key Vector Design
Sub-graphs key vector design is the same as MSSD scenario.
MetaData Grouping |
KV |
|---|---|
Stream Metadata |
StreamRX1 KVs |
Device1 Metadata |
DeviceRX1 KVs |
Device2 Metadata |
DeviceRX2 KVs |
Stream + Device Metadata |
StreamRXDeviceRX1 KVs, DeviceRX1 PP KVs |
Stream + Device Metadata |
StreamRXDeviceRX2 KVs, DeviceRX2 PP KVs |
GKV
GKV1: <StreamRX KVs, StreamRX PP KVs, StreamRXDeviceRX1 KVs, DeviceRX1 PP KVs, DeviceRX1 KVs>
GKV2: <StreamRX KVs, StreamRX PP KVs, StreamRXDeviceRX2 KVs, DeviceRX2 PP KVs, DeviceRX2 KVs>
Device Switch
Device switch describes the scenario when audio output is routed from one sound device to another sound device due to external event e.g end-user unplug headphone. In plug-in architecture, the mechanism is tearing down device leg of audio graph and instantiate new device-leg sub-graphs to form new full audio graph. Figure below illustrates device switch from headphone to speaker. During device switch, Stream-Device, Device PP, Device for headphone are teared down and new sub-graphs of same types for speakers are instantiated.
Device Switch Example
Guide to Setup Use Case through ALSA
Setup Sequence
Issue mixer control to set up routing inside audio peripheral
Issue mixer control to set media format of back-end
Issue mixer control to set meta data for device sub-graph
Issue mixer control to set meta data for Stream and Stream PP sub-graphs
Issue mixer control to set meta data for PSPD and Device PP sub-graphs
Issue mixer control to connect front-end to back-end
Invoke tinyalsa APIs to kick off use case
Shutdown Sequence
Mixer Control and Payload
Set backend pcm configuration:
tinymix '<back-end name> rate ch fmt' <sample rate> <channel count> <PCM format enum value> <data format>
Connect/Disconnect front-end to back-end:
tinymix 'PCM<#> connect' <back-end name> tinymix 'PCM<#> disconnect' <back-end name>
Configure device meta data:
tinymix '<back-end name> metadata' <meta byte payload>
Configure stream and stream PP subgraphs meta data:
tinymix 'PCM<#> control' Zero tinymix 'PCM<#> metadata' <meta byte payload>
Configure stream device and device PP subgraphs meta data:
tinymix 'PCM<#> control' <back-end name> tinymix 'PCM<#> metadata' <meta byte payload>
<PCM format enum value>: This value is derived from ALSA asound.h SNDRV_PCM_FORMAT
<back-end name>: this string is derived from agm parsing /proc/asound/pcm to obtain all available hardware endpoint back-ends available on given board
<meta byte payload>: agm_meta_data_gsl structure in below code snippet depicts the format of payload. Passing of sub-graph KVs and sub-graph CKV have been described previously. Along with GKV and CKV, there is portion of payload for passing property IDs. Currently, it is used only for aiding the device switch use case.
/**
* Key Vector
*/
struct agm_key_vector_gsl {
size_t num_kvs; /**< number of key value pairs */
struct agm_key_value *kv; /**< array of key value pairs */
};
struct sg_prop {
uint32_t prop_id;
uint32_t num_values;
uint32_t *values;
};
/**
* Metadata Key Vectors
*/
struct agm_meta_data_gsl {
/**
* Used to lookup the calibration data
*/
struct agm_key_vector_gsl gkv;
/**
* Used to lookup the calibration data
*/
struct agm_key_vector_gsl ckv;
/**
* Used to lookup the property ids
*/
struct sg_prop sg_props;
};
Sample Mixer control setup for Usecases.
Playback SSSD
Setup Sequence
‘CODEC_DMA-LPAIF_WSA-RX-0 rate ch fmt’ 48000 2 2(PCM_16) 1(FIXED_POINT)
‘CODEC_DMA-LPAIF_WSA-RX-0 metadata’ bytes //bytes representing KV for device/optionally devicePP
‘PCM100 getTaggedInfo’ bytes // to retrieve module tags, mid, iid information for the GKV configured for PCM100 and CODEC_DMA-LPAIF_WSA-RX-0
‘PCM100 connect’CODEC_DMA-LPAIF_WSA-RX-0 // connects PCM100 to CODEC_DMA-LPAIF_WSA-RX-0 AIF (front end to back end connection)
Teardown Sequence
pcm_stop()
pcm_close()
‘PCM100 disconnect’ CODEC_DMA-LPAIF_WSA-RX-0 // connects PCM100 to CODEC_DMA-LPAIF_WSA-RX-0 AIF (front end to back end connection)
5.2. Playback SSMD
‘PCM100 getTaggedInfo’ bytes // to retrieve module tags, mid, iid information for a specific GKV
‘PCM100 connect’ CODEC_DMA-LPAIF_WSA-RX-0 // connects PCM100 to CODEC_DMA-LPAIF_WSA-RX-0 AIF
‘PCM100 metadata’ bytes //bytes representing KV for StreamDevice(PSPD), DevicePP subgraphs
‘PCM100 getTaggedInfo’ bytes // to retrieve module tags, mid, iid information for a specific GKV
‘PCM100 setParam’ bytes //bytes representing the configuration of modules StreamDevice(PSPD), DevicePP subgraphs
‘PCM100 connect’ CODEC_DMA-LPAIF_WSA-RX-1 // connects PCM100 to CODEC_DMA-LPAIF_WSA-RX-1 AIF
5.3. Playback MSSD
‘PCM100 getTaggedInfo’ bytes // to retrieve module tags, mid, iid information for a specific GKV
‘PCM100 connect’ SLIM_0_RX // connects PCM100 to SLIM_0_RX AIF
‘PCM101 metadata’ bytes //bytes representing KV for stream, streamPP
‘PCM101 getTaggedInfo’ bytes // to retrieve module tags, mid, iid information for a specific GKV
‘PCM101 connect’ SLIM_0_RX // connects PCM101 to SLIM_0_RX AIF
